T-Type Multispectral Medium-Load PTZ Camera

Brand Name : KAIDUN

Model Number : MCL-PT003

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 5000 units/year

Delivery Time : 5-8 week

Packaging Details : Wooden box packaging / cardboard box packaging

Thermal Resolution : 640*512

Thermal Length : 100mm

Visible Resolution : 4MP

Visible Focal Length : 55x optical zoom

Power : DC24V,≤55W

Total Weight : ≤20kg

Dimensions : 315*245*475mm

Contact Now

T-Type Multispectral Medium-Load PTZ Camera
Key Features
  • The MCL-PT003 is a long range camera equipped with an observation-type thermal imaging lens
  • Spherical rotational structure allows for multi-angle observation with horizontal range of 0° to 360° and vertical range of -90° to +90°
Application Environment
T-Type Multispectral Medium-Load PTZ Camera
Forest Fire Prevention
T-Type Multispectral Medium-Load PTZ Camera
Army Border Guard
T-Type Multispectral Medium-Load PTZ Camera
The Army Defends the Coast
T-Type Multispectral Medium-Load PTZ Camera
Ships
T-Type Multispectral Medium-Load PTZ Camera
Shipping Port
Unlike manual zoom lenses, electric zoom lenses are used in a wide range of outdoor scenes covering extensive focal lengths. The focal length can be adjusted remotely to zoom in on important areas, providing excellent monitoring capabilities. With continuous development in the security industry and increased infrastructure investment, demand for electric zoom lenses has grown significantly in urban security, highways, railways, forest fire prevention, maritime management, ports, border defense, and oil fields.
Main Features
Material Aluminum Alloy (with powder coating)
Protection Class IP66
Working Temperature -40℃~+65℃
Working Humidity <90%
Video IP
Visible Resolution 4MP
Visible Focal Length 40x optical zoom
Thermal Resolution 640*512
Thermal Length 100mm
Motor & Transmission Method Torque Direct-Drive Motor Precision Spur Gear Transmission
Rotation Range Horizontal: 0~360° (0.17°~180°/s)
Vertical: -90°~+90° (0.17°~130°/s)
Function T-Type Bilateral Load (3Kg per side),Gyro Stabilization, Optical Fog Penetration Machine, Pedestrian, Non-motor Vehicle and Vessel Recognition
Voltage DC24V (≤55W)
Weight ≤20kg
Dimensions (H*L*W) 315*245*475mm
Mounting Formal Installation, Four-Point Base Fixation

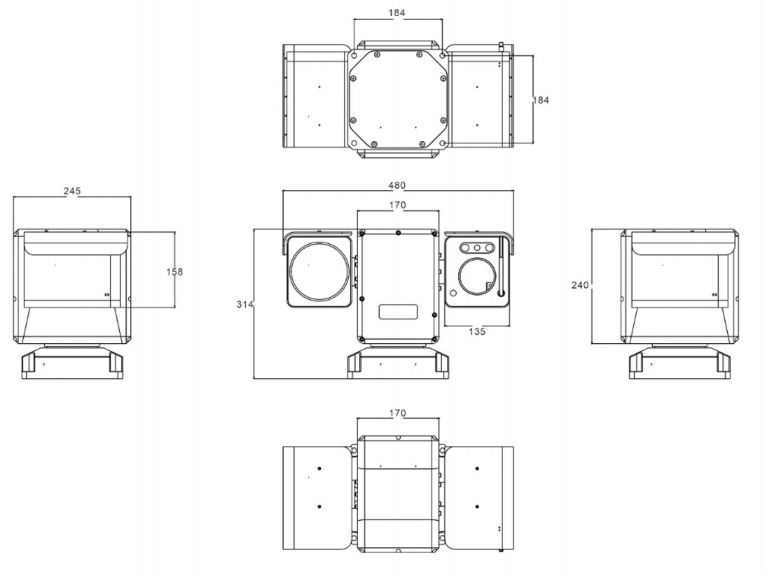

Dimensions
T-Type Multispectral Medium-Load PTZ Camera
